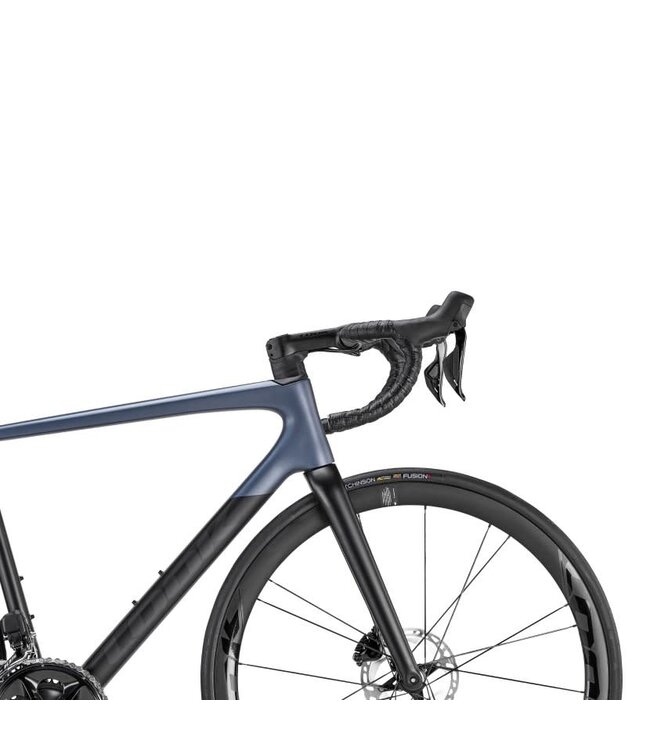

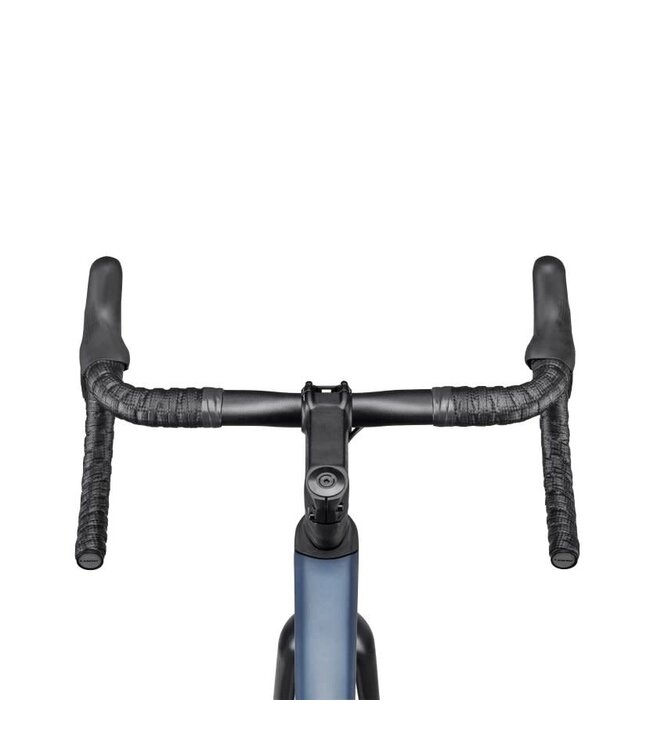

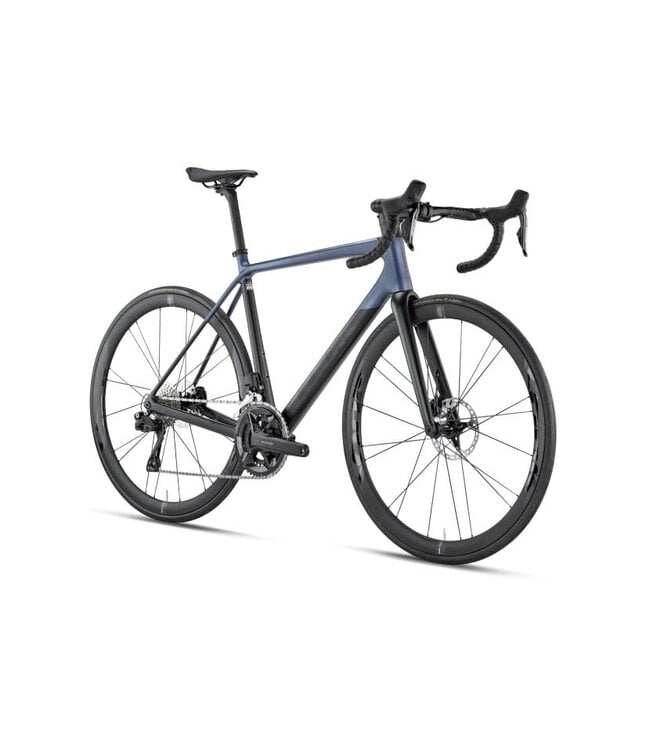

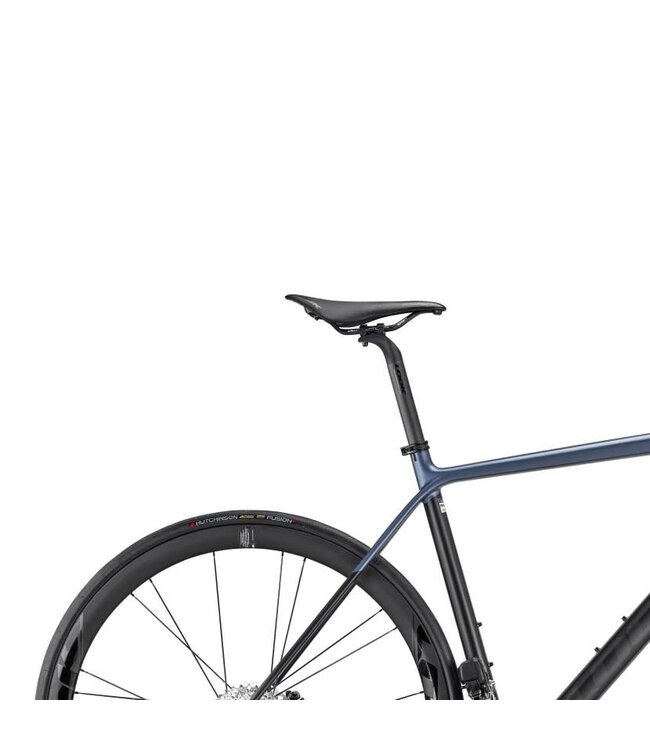

785 Huez Grey Blue Satin
$6,000.00
Excl. tax
Backorder
The new 785 Huez Shimano 105 Di2 Grey Blue is designed for climbers. Light and responsive, it will propel you to the summit while providing the required compliance to explore mountain passes and spend long days in the saddle. Read more..
Information
| Handlebar | LOOK LS3 ALLOY AERO (XS:38 /S:40 M/L:42 XL:44) |
|---|---|
| Stem | LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120) |
| Seatpost | LOOK LS2 CARBON 27.2 mm 350 mm |
| Saddle | LOOK SHORT FIT DYNAMIC open fit |
| Wheels | LOOK R 38 D CARBON SHIM BODY |
|---|---|
| Tires | HUTCHINSON FUSION 5 PERFORMANCE TUBELESS READY 700x25 |
| Thru axles | X12 : M12 x 1.5 142x12 R / 100x12 F |
| Derailleurs | HIMANO 105 DI2 R7150 |
|---|---|
| Shifters | SHIMANO 105 DI2 R7170 |
| Crankset | SHIMANO 105 R7100 50 x 34 |
| Cassette | SHIMANO 105 R7000 11 x 34 |
| Bottom bracket | T47 TOKEN T47V24 PREMIUM BEARINGS |
| Rotors | SHIMANO RT 70 F: 160 mm R : 140 mm |
| Chain | SHIMANO M7100 12 SPEED |
| Sizes | XS - S - M - L - XL |
|---|
Geometry
785 Huez
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 519.2 | 543.3 | 567.3 | 591.3 | 615.3 |
| Reach | 365.3 | 375.3 | 385.6 | 395.5 | 405.6 |
| I - Head tube (°) | 71.5 | 71.5 | 73 | 73 | 73 |
| J - Seat tube (°) | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| A - Seat tube | 480 | 504 | 530 | 554 | 579 |
| B - Top tube | 509.3 | 526 | 543 | 559.6 | 576.3 |
| C - Front Center | 569.8 | 587.6 | 586.7 | 603.9 | 621.7 |
| D - Trail | 59.8 | 59.8 | 59.3 | 59.3 | 59.3 |
| F - Fork offset | 50 | 50 | 43 | 43 | 43 |
| G - Chainstays | 410 | 410 | 410 | 410 | 410 |
| K - Head tube | 94.4 | 119.6 | 140.7 | 165.8 | 193.5 |
| L - Fork | 368 | 368 | 368 | 368 | 368 |
| HAV | 73 | 73 | 70.5 | 70.5 | 68 |
| Standover | 709.9 | 733.7 | 761.7 | 785.5 | 812.5 |
